Clear audio for all, no installation

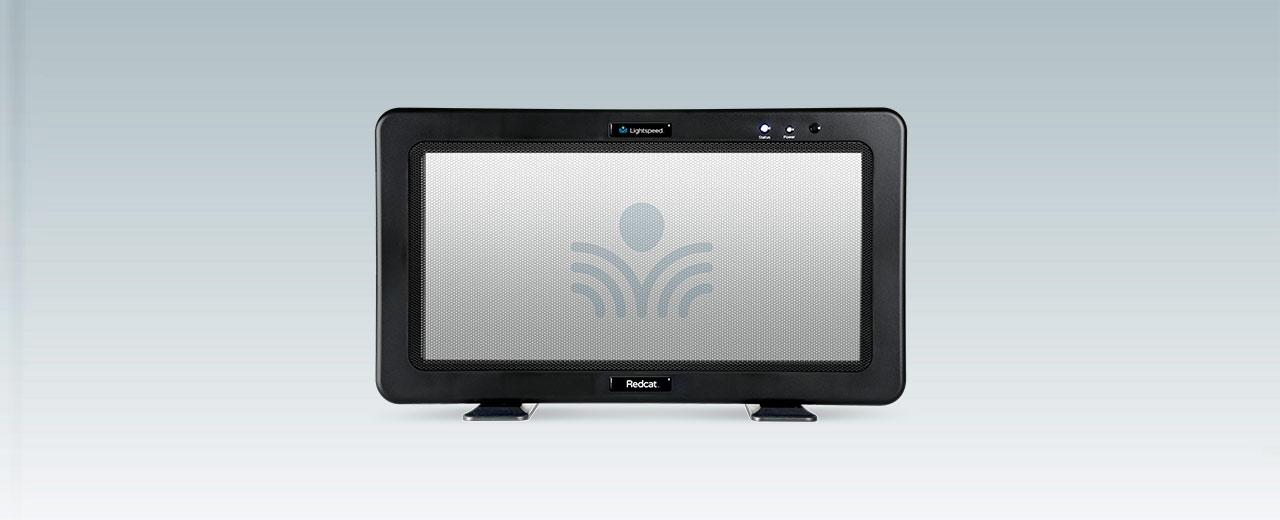

Redcat’s all-in-one design makes it the simplest way to bring clear audio to any class. Ready to go right out of the box, Redcat delivers even distribution of sound and high speech intelligibility throughout the classroom to ensure the teacher’s voice is clearly heard by all students.
Redcat in the Classroom
Hover in the classroom to explore
Simple, portable, purpose-built for learning
Ready out of the box, no installation required
Plug it in and begin speaking. No need for costly installation, Redcat maximizes your investment in instruction.
Flat-panel speaker excels in speech intelligibility
Exciter technology fills the room with the teacher’s natural voice, enabling students to hear every word.
Portable
and flexible
Redcat can easily be moved around to any instructional space, with optional battery it can even be used for outdoor learning.
Access technology makes the difference
Superior wireless performance
Longer wireless range, no interference, no impact to wi-fi, and scalable to your evolving technology and instruction.
Point-to-pair: easy and versatile
Simply point the microphone at Redcat to pair, allowing for greater teacher mobility between rooms and simplicity of adding components.
2-way audio for distance learning
Interface with computer USB to connect students at home with the teacher and students in the live classroom.
See the Redcat Data Sheet
Featured Content

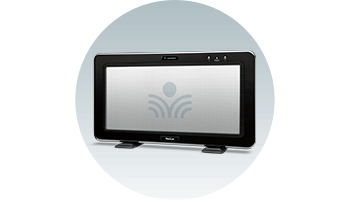

Redcat (RCN)
SKU
RCN
Short Description
All-in-one classroom audio system with integrated receiver, amplifier, and speaker
Power Output
15W
Total Harmonic Distortion
<1%, 10 W
Wireless Transmission Range
Up to 200 ft (60m) open field
Audio Input with Volume Control
[1] 3.5mm
ALD Output with Volume Control
[1] 3.5mm
Flat-panel Speaker System
Exciter Technology sound panel
Speaker load impedance
8 Ω
Controls
(1) power button; (1) audio input volume control; (1) audio output volume control; (1) tone control
Overall Dimensions (W x H x D)
16" x 1.75" x 9.5" (406 x 45 x 241mm)
Weight
2.9 lbs (1.3 kg), with battery pack 3.6 lbs (1.6 kg)
Mounting
Table top or wall-mount
Documents
Videos
Tutorials
Troubleshooting
How to Pair Your Lightspeed System
Explore how to pair your Lightspeed instructional audio system for the classroom
Lightspeed Redcat RCN Training
Clearing Pairing Registry on the Redcat (RCN) System
How to Pair Your Lightspeed System
Explore how to pair your Lightspeed instructional audio system for the classroom
How to Pair Your Lightspeed System
Explore how to pair your Lightspeed instructional audio system for the classroom

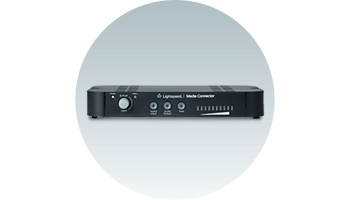

Media Connector (MCN)
