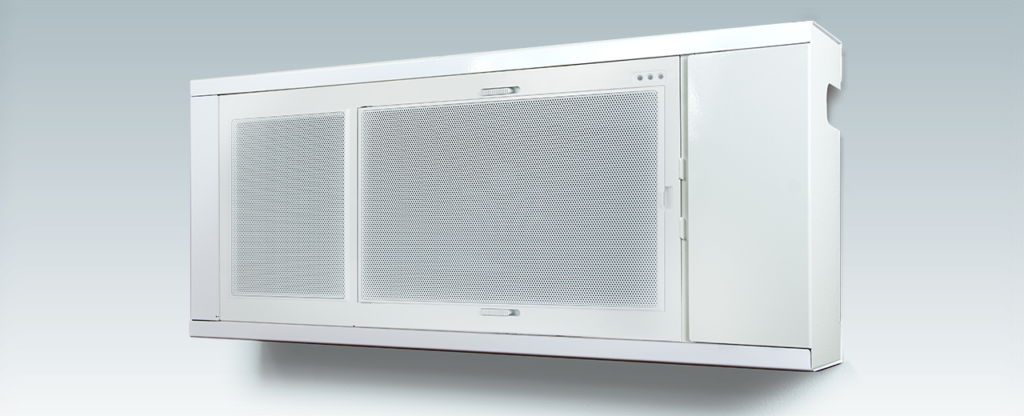

Full-Range Audio, Simple Ceiling Installation

Topcat’s hybrid speaker system delivers superior audio quality of voice and multimedia. The all-in-one design combined with wireless audio integration makes installation simple and cost effective for both new construction and existing classrooms.

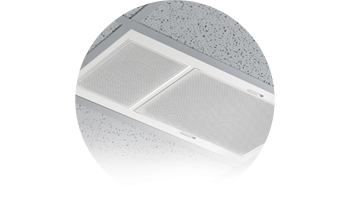

Topcat in the classroom

Hover in the classroom to explore

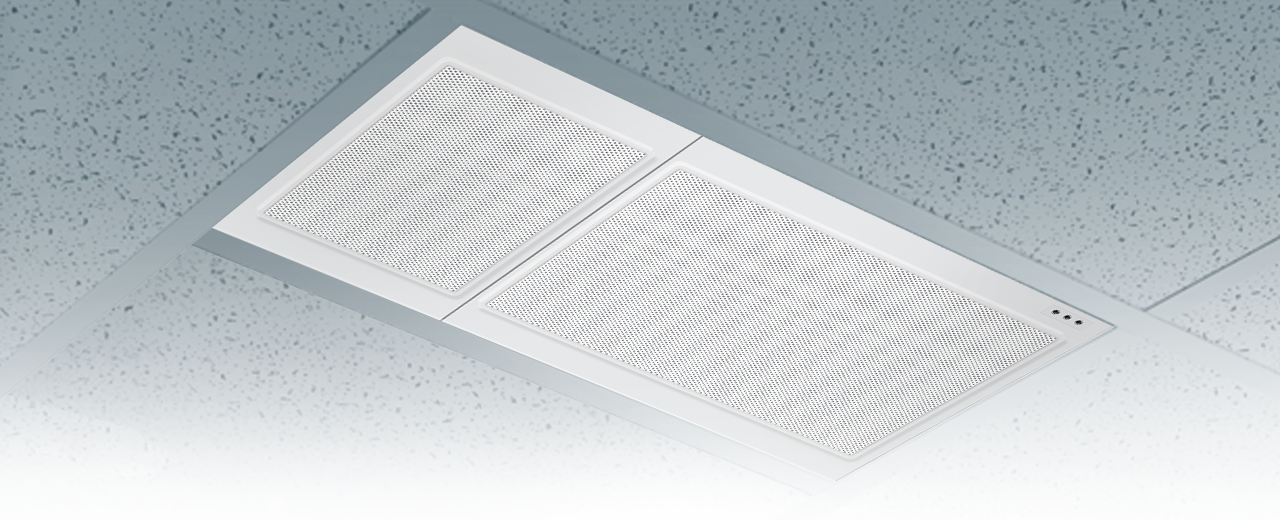

Wireless Simplicity, Seamless Ceiling Integration

Seamless Design Approach

Disappears into the ceiling for a clean, clutter-free space.

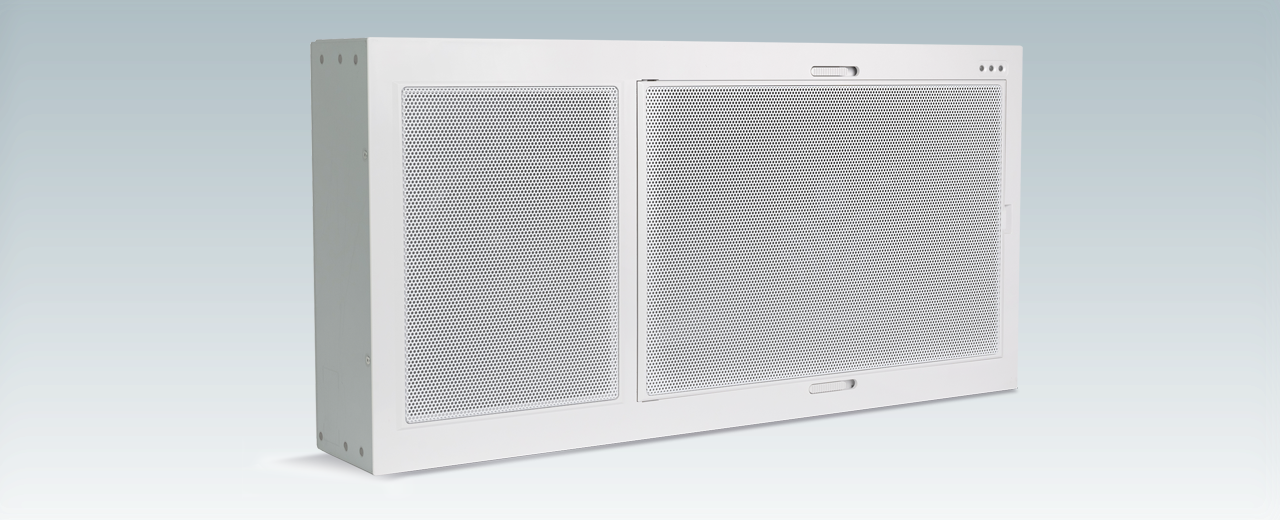

Hybrid Speakers Optimized for the Classroom

A flat-planel speaker for even distribution of speech and cone speaker for full-range multimedia sound.

Wireless Audio Integration Saves Cost

Wireless connectivity to multimedia eliminates the need for long cabling runs.

Access technology makes the difference

Superior wireless performance
Point to pair: Easy and versatile
2-way audio for distance learning

Superior wireless performance

Longer wireless range, no interference, no impact to wi-fi, and scalable to your evolving technology and instruction.

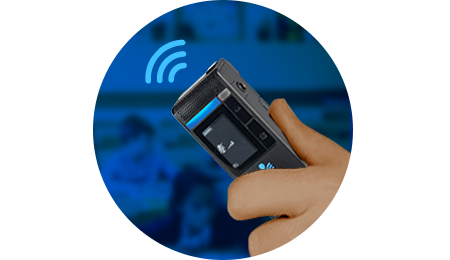

Point-to-pair: easy and versatile

Simply point the microphone at Redcat to pair, allowing for greater teacher mobility between rooms and simplicity of adding components.

2-way audio for distance learning

Interface with computer USB to connect students at home with the teacher and students in the live classroom.

Built-in Integration with Life-Safety Systems

Paging

Mutes instructional audio system when classroom announcements are broadcast.

Fire Alarms

Mutes instructional audio system when fire alarm is activated.

Alert Notifications

Activate alert from the teacher’s Flexmike.

See the Topcat Data Sheet

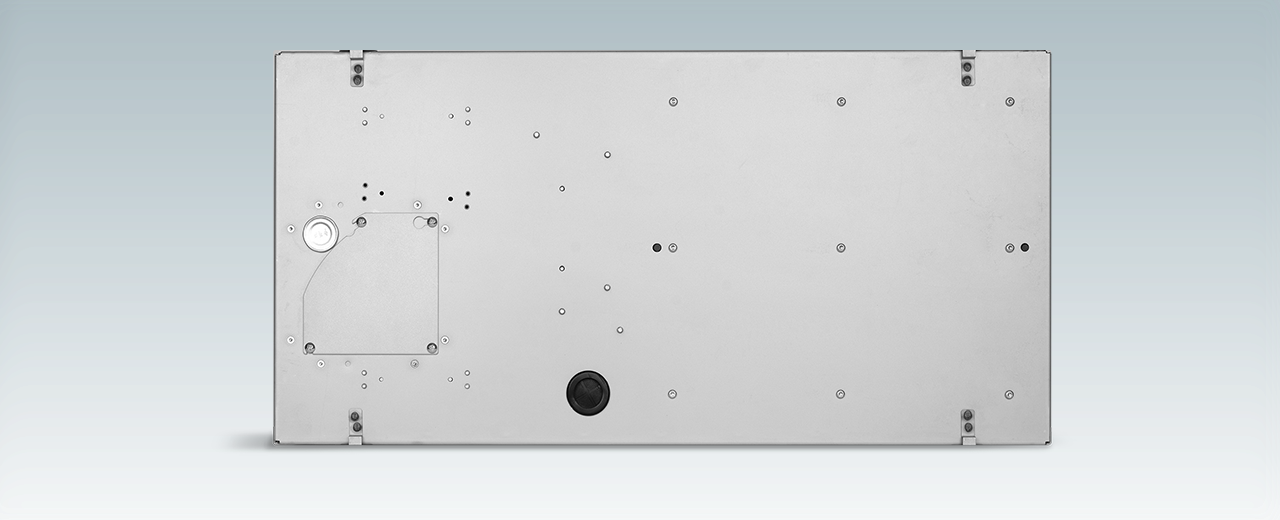

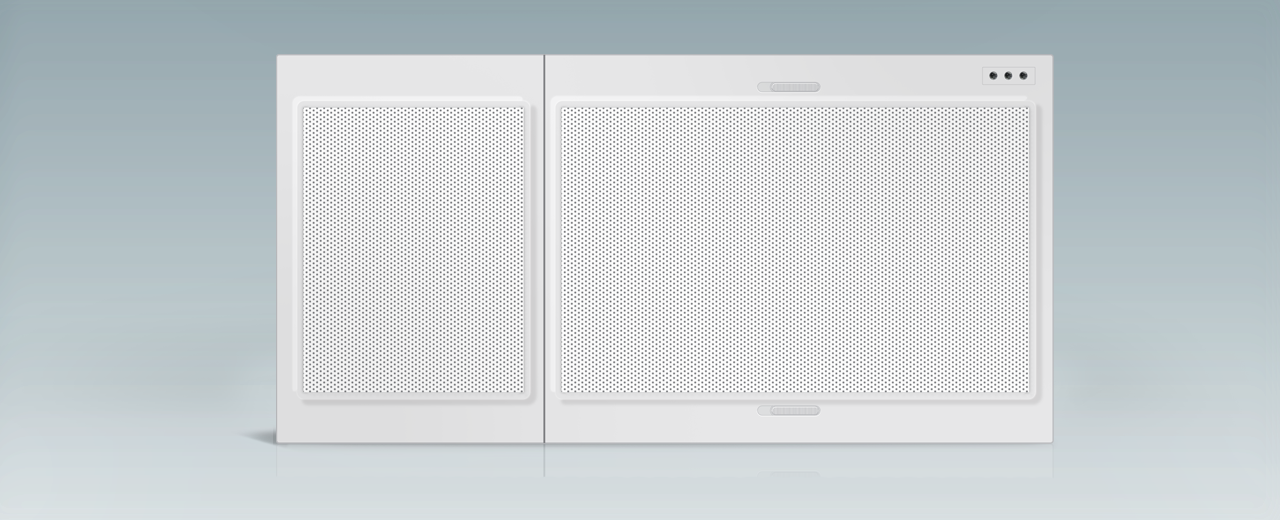

Topcat (TCT)

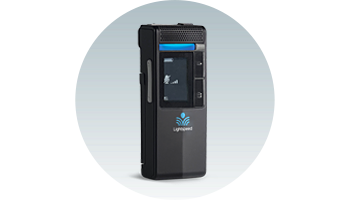

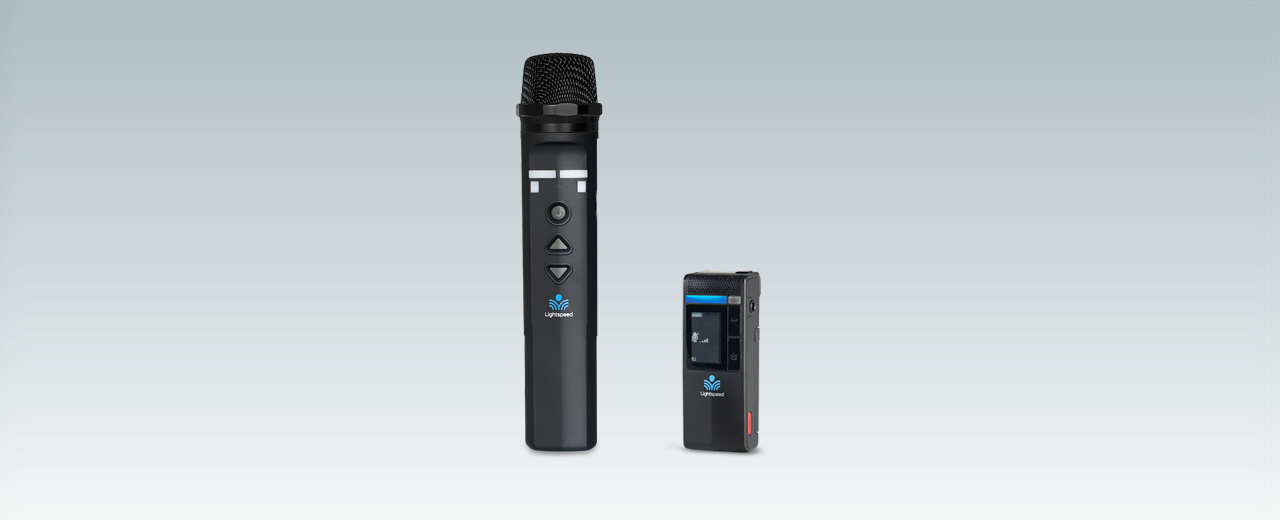

Clearmike (CMT)

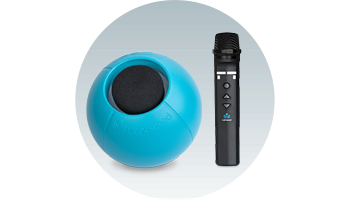

Sharemike (SMT)

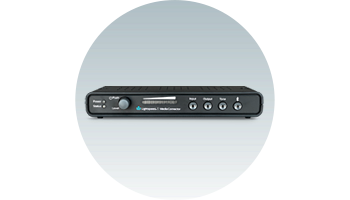

Media Connector (MCT)
SKU
TCT
Wireless Communication
Access Technology (1.9 GHz)
Frequency Response
20 Hz - 20 kHz Power Amp, 150 Hz - 6.5 kHz Wireless
Power Supply Options
AC Mains: 100-240V ~ 50/60Hz 1.5A
Power Output
20W RMS
Tone Control
Bass/Treble Control
Audio Inputs
Three (3) 3.5mm inputs, one S/PDIF coaxial digital input
Audio Outputs
One (1) 3.5mm output
Maximum Input/Output Level
1.4VRMS / 1.4VRMS
Total Harmonic Distortion
<1%
Analog Control Signals
Inputs: PageFirst (25/70V page mute), Relay Input
Output: Contact closure (initiated from microphone)
Dimensions (W x H x D)
23.75” x 11.73” x 4.19” (603mm x 298mm x 106mm)
Weight
21.2 lbs (9.2 kg)
Mounting
In-ceiling installation or wall-mount with bracket

SKU
CMT
Description
Pendant-style transceiver
Earbud Lanyard
Magnetic clasp with integrated earbud
Wireless Communication
Access Technology (1.9 GHz)
Analog Audio I/O
3.5mm TRRS
Analog Audio I/O
USB-C
Control Buttons
Power/mute, volume up/down, alert, two programmable
Volume Control
+/- 12dB
Total Harmonic Distortion
<1%
Display
E-paper display
Battery Power
3.7V LiPo battery pack
Battery Life
8 hours (fully charged)
Charging
Cradle charger or USB-C
Dimensions (L x W x H)
3.0” x 1.2” x 0.9” (76mm x 30mm x 23mm)
Weight
1.3 oz (37g)
Warranty
5-Year

SKU
SMT
Description
Handheld transceiver
Lanyard
None
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
Power
On/off button
Dimensions
6.0” x 1.1” x 1.1” (153 x 28 x 28mm)
Weight
2.6 oz (73g)

SKU
MCT
Description
Wireless audio transceiver
Power Input
5V USB-C connector
Wireless Communication
Access Technology (1.9 GHz)
Tone control
1 bass / treble control
Digital audio interface
USB-C 2-way digital audio interface
Audio inputs
Three 3.5mm inputs, one Toslink digital input, Bluetooth
Audio outputs
Two 3.5mm outputs
Audio Link/Pair Indicator
One LED on front panel
Device pairing
Push button
Dimensions (L x W x H)
7.5” x 4.2” x 1.14” (190 x 107 x 29mm)
Weight
8.6 oz. (245g)


Sharemike
Lightweight wireless student microphone for K-12 classrooms.
Media Connector
Integrate all classroom multimedia audio sources including computers, panels, mobile devices, and more with the Lightspeed Media Connector.

Documents
Videos
Contact Technical Support
Troubleshooting

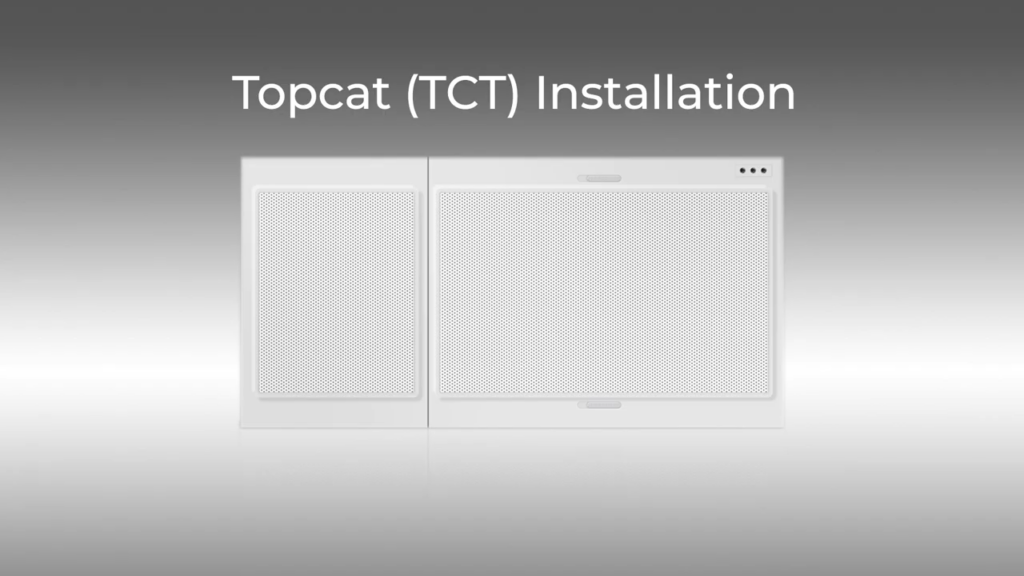

Lightspeed Topcat Tct Installation Overview 0 6 Screenshot
